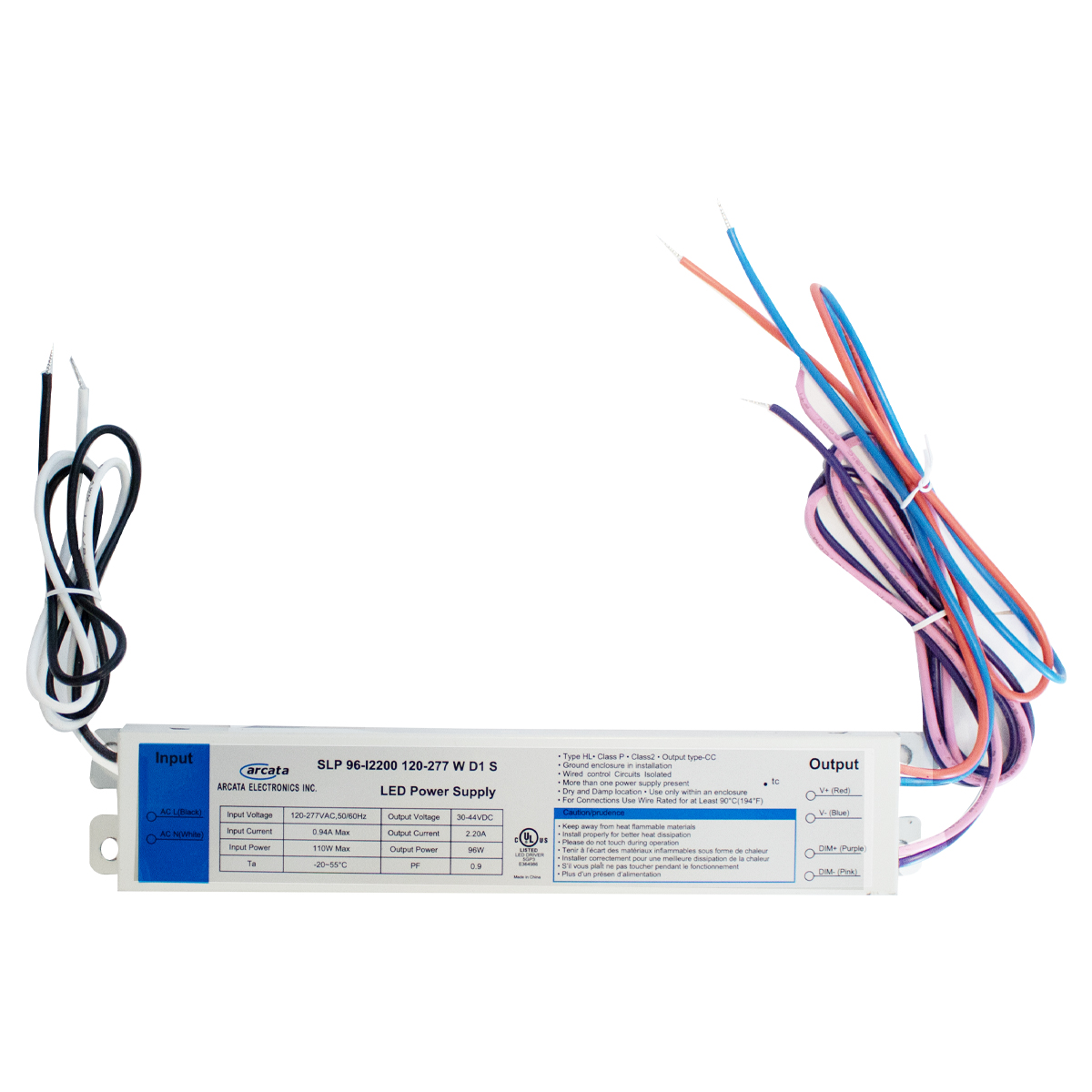

Arcata SLP 96-I2200 120-277 W D1 S Driver

The Arcata Electronics SLP 96-I2200 is a high-performance, UL-listed driver designed for flexible use across various applications. It features Type HL, Class P, and Class 2 certifications, with constant current (CC) output for reliable power delivery. Ideal for day and damp locations, it must be installed within an enclosure. Its ground enclosure and isolated wired control circuits ensure added safety during installation. For connections, use wire rated for at least 90°C (194°F).

Specifications:

• Input Voltage: 120-277VAC, 50/60Hz
• Output Voltage: 30-44VDC
• Input Current: 0.94A Max
• Output Current: 2.20A
• Input Power: 110W Max
• Output Power: 96W
• Ta: -20~55 C
